Ampisent PowerPro 3PH Three Phase Power Meter (120A Per Phase)

Ampisent PowerPro 3PH Three Phase (120A Per Phase) Test

Ampisent PowerPro 3PH Three Phase Power Meter (120A Per Phase)

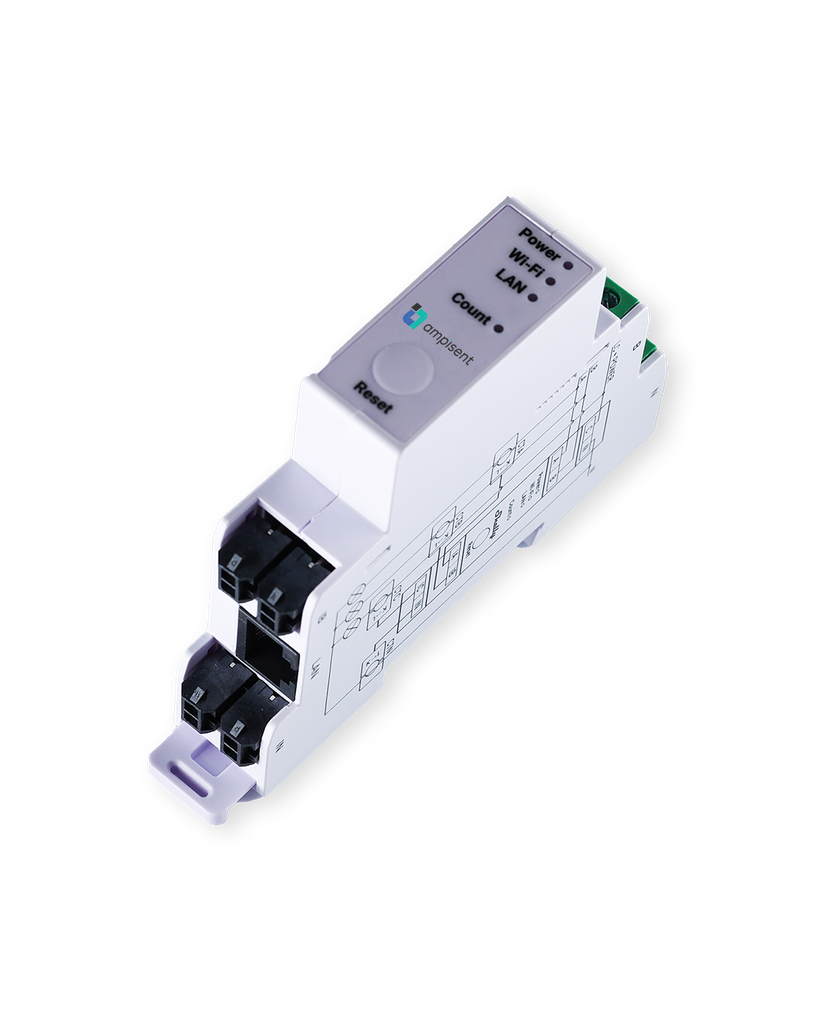

Ampisent PowerPro 3PH (Powered by Shelly) is a DIN rail mountable three-phase energy meter. It provides professional integrators with additional options for end-customer solutions. Ampisent PowerPro 3PH reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.

can measure up to 120A per phase and the neutral
4 quadrant measurement with multiple connection types
Accuracy Class B active energy (Compliance with IEC 62053-21 based on manufacturer testing)
Photovoltaic ready
Phase sequence error detection (option)
Optical pulse indication of energy usage
Measurement accuracy tо 1%
Stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals

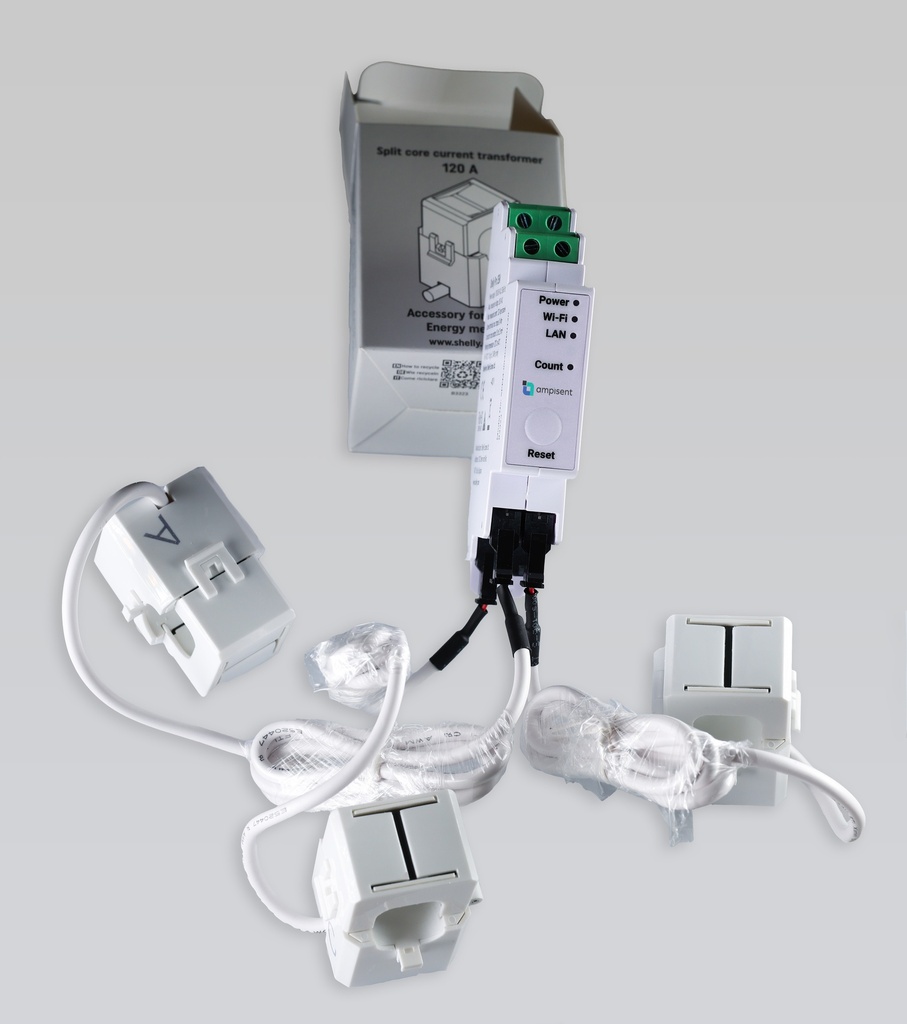

Package includes 3 pieces of 120A Current Transformers

Download product specification PDF document:

Subscription

A subscription is required for the use of the Ampisent mobile app, with a minimum subscription period of 12 months, which must be paid upfront. To complete your purchase, ensure that you add the subscription product at the checkout stage along with any other items in your cart. This subscription grants access to the full features of the Ampisent app, including real-time power monitoring, analytics, and alert management. Subscription cost is not included in the listed price below.

Switching

The Ampisent PowerPro 3PH can be enabled for switching capability by using a switch add-on, which allows control of contactors or other electrical appliances. This add-on supports switching loads up to 2A and can be easily clipped onto the Ampisent PowerPro 3PH device. It provides an efficient way to extend functionality for controlling external devices directly. The switch add-on is purchased separately.

Installation

A qualified electrician is required to install the Ampisent PowerPro series devices, as they handle high-voltage circuits and need to comply with electrical safety standards. The installation process is quick and efficient, typically taking less than 15 minutes to complete for a standard setup. This ensures the devices are correctly installed and ready for use without extended downtime.

Download installation guide PDF document:
